Solenoid Valve

ALV210 series direct-acting solenoid valve can be used for controlling singe-acting pneumatic actuator. As a 3/2 NC solenoid valve, it has 1/4" and 3/8" connectors for option. The threaded nipple of solenoid valve can be directly connected with pneumatic actuator without need of bracket, so the mounting is very simple.

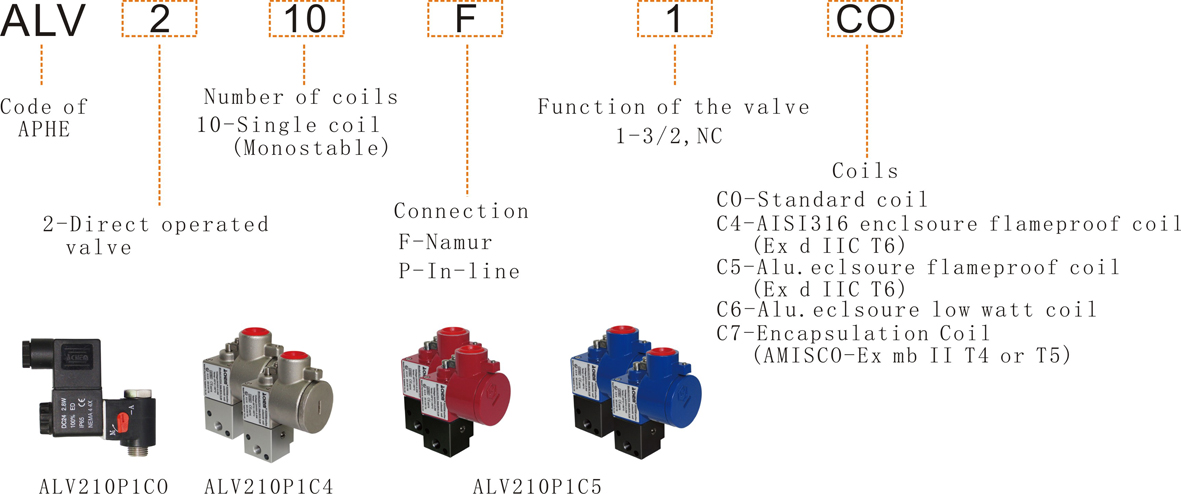

Ordering Guide：

Dimensions of ALV210P1C0：

Main Features:
1.Direct acting 3/2 Normal Closed.
2.Direct mounting on 1/4" or 1/8" air port of actuator. Manual override on the body.
3.The same valve can be fitted with IP65 NEMA4,4X coil (C0) or with Ex mb II T4 or T5 coil(C7).

Dimensions of ALV210P1C3/C4/C5：

Main Features:
1.The valve and enclosure of coil are available with stainless steel(316) or aluminum.
2.Direct acting 3/2 Normailly Closed. Manual override on the body.
3.Direct mounting on 1/4" or 1/8" air port of pneumatic actuator.
4.The valve can be fitted with aluminium or stainless steel 316 enclosure coil certificated for use in corrosive area and in hazardous area(Class I, Div.1 Group A, B, C, D, Ex d II C T6).
