Mechanical Electric-Pneumatic Positioner

ALP-1000 rotary travel mechanical valve positioner is designed to provide accurate positioning for various kinds of valves, receive 4~20mA signal control and can provide 4~20mA feedback. It features simple adjustment, rapid feedback speed and easy for mounting and maintenance. It has passed Exia IICT6/Exd II BT6 certifications.

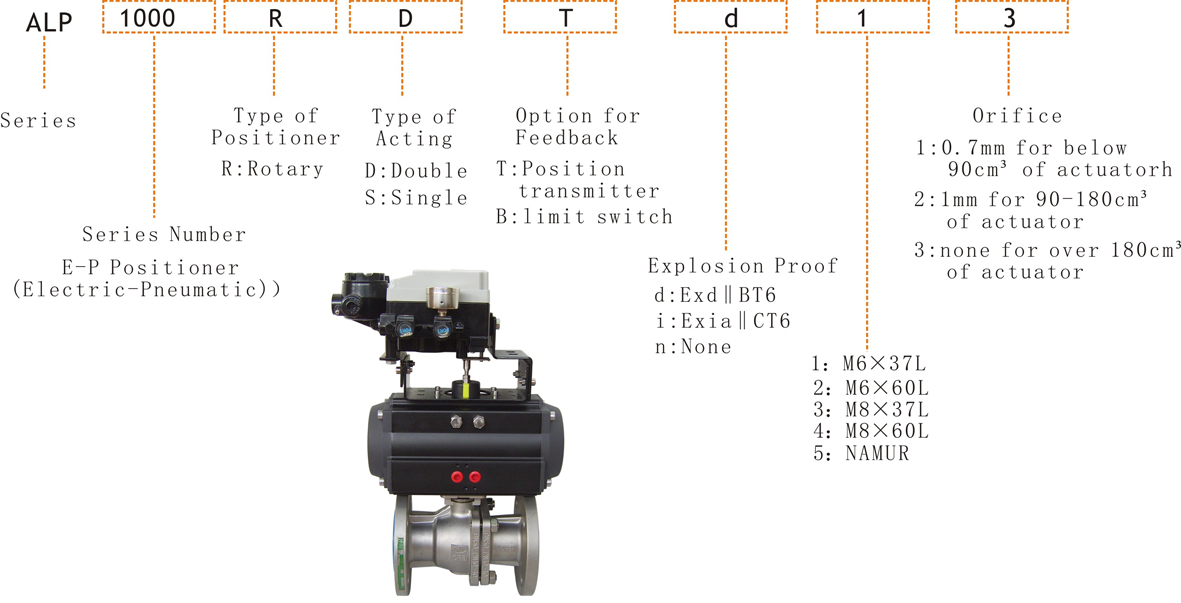

Ordering Guide：

Main Features：

1. There is no resonance to the operation of positioner in the range of 5-200Hz.
2.Performing 1/2 Split Control without any other substitutes.
3.Easy to adjust zero and span.
4.Easy to convert from Reverse Acting to Direct Acting or vice versa, and from Spring Return to Double Acting or vice versa.
5.Easy Feedback Connection and meeting the standard of ISO5211 or Namur.
6.Fast and accurate response.

Dimensions：
